Site C - Peaks Branch at I-30

Peaks Branch

Intersection of E R L Thornton Freeway (I-30) and South Hill Avenue

Site C is one of the two Peak Branch intake sites and the site will have Shaft C (12.5-ft diameter & 164-ft deep) and a lateral connecting shaft to the main tunnel.

Site+C+-+Jan+2021+-++Shaft+C+Initial+Support+(Split-Set+Stabilizers+and+Welded+Wire+Fabric).jpeg

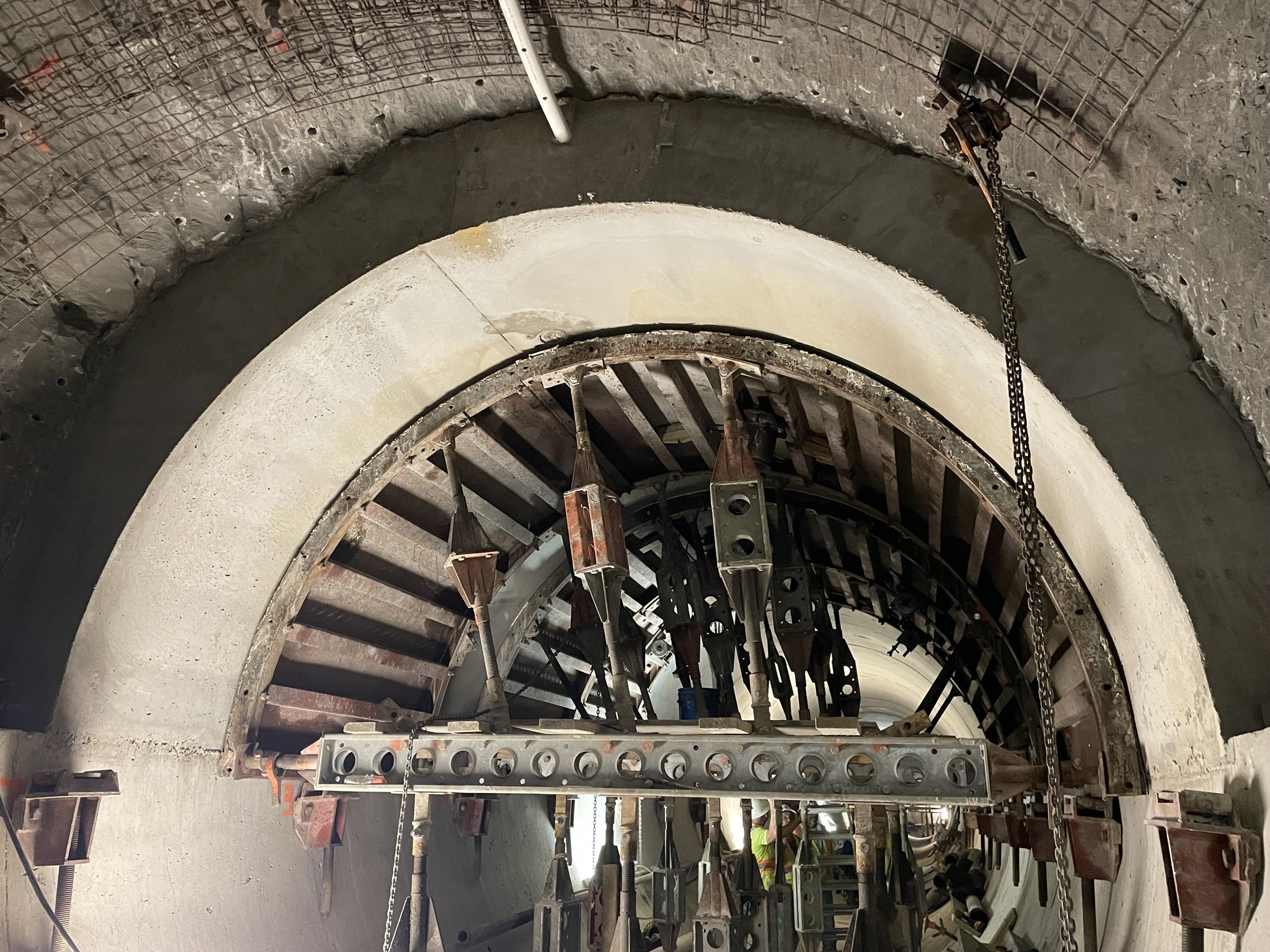

Site C - Lat C.JPG

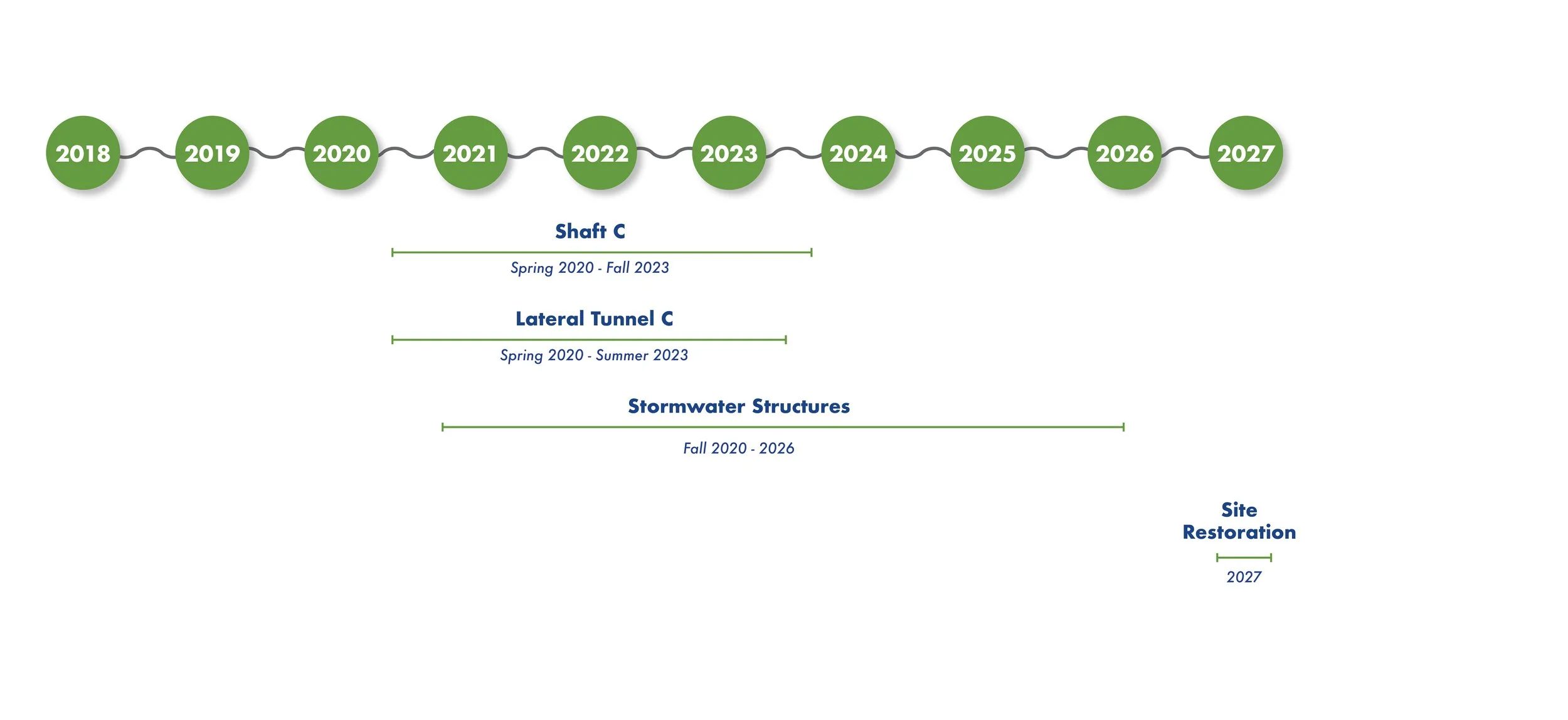

*Timeline: Site C

* Based on current Contractor Project Schedule.
